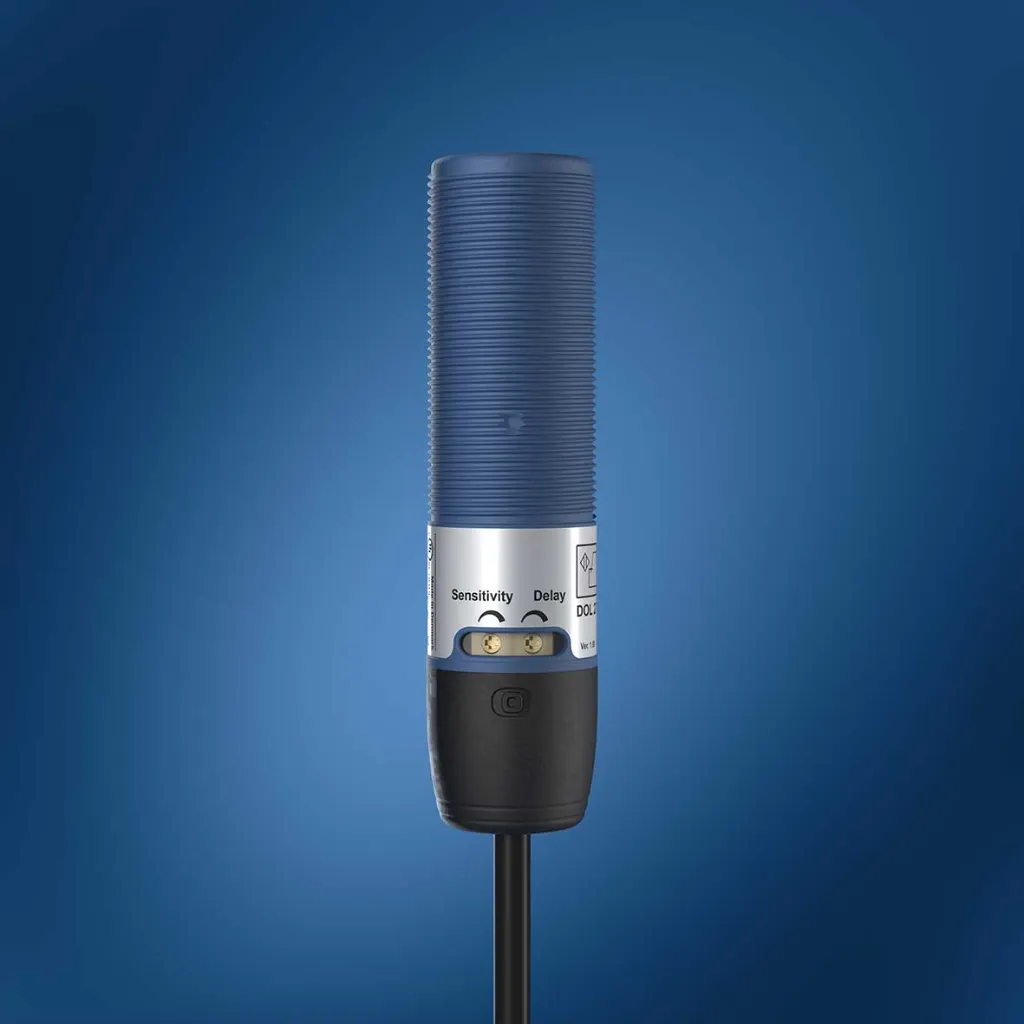

DOL 27 is a 30 mm capacitive proximity sensor designed for detecting loose and solid materials. The sensor has highly unique functionalities for the agricultural and industrial industry. LED lights indicate the status of the sensors.
Benefits
- Hardened design for harsh environment
- Immune to EMI, short circuits, and any overload
- Low power consumption in off state
- SCR, PNP or NPN output for different needs
- Threaded
No more burned off sensors due to installation mistakes
The DOL 27 sensor is immune to EMI, short circuits, and any overload which prevents sensors from burning off due to installation mistakes.
The sensor has IP69k and NEMA 1/3/4/6/12/13 environment protection.
Very low power consumption in off state
The sensor has very low power consumption in off state, enabling the possibility for sensors working in parallel on the same contactor. This gives the sensors a unique possibility for controlling cross auger systems.
Easily adjusted
DOL 27 has easy trimmer adjustment on a single turn 240 degree trimmer with linear or non-linear scale.
Easily mounted
Like all our 30 mm sensors, DOL 27 can be easily mounted from the outside of a silo by using the gland we made for mounting. All you must do is mount the gland on the outside surface of the silo and mount the sensor to it. For silos made of metal or thick material, you will have to drill a small hole in it for the sensor to work.
Threaded, 2m Cable
- 105301 20-280VAC/DC, SCR, Non-Flush, Break, Off, 0-20mm
- 105302 20-280VAC/DC, SCR, Non-Flush, Make, Off, 0-20mm
- 10530310-36VDC, PNP, Non-Flush, NO/NC. Off, 0-20mm
- 105304 10-36VDC, NPN, Non-Flush, NO/NC. Off, 0-20mm
- 105305 20-280VAC/DC, SCR, Flush, Break, Off, 0-12mm
- 105306 20-280VAC/DC, SCR, Flush, Make, Off, 0-12mm
- 105319 20-280VAC/DC, SCR, Non-Flush, Break, On/Off, 8.5mm, No Trimmers
- 105322 20-280VAC/DC, SCR, Non-Flush, Programmable, None, 0-20mm
Not all combinations are valid
